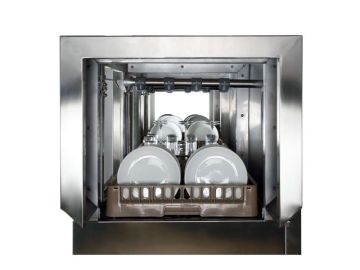

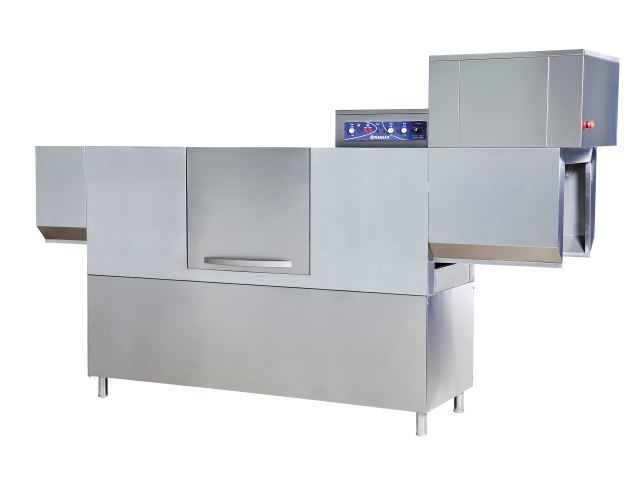

Maksan DW-3000 Konveyörlü Tip Bulaşık Makinesi 3000 tabak/saat yıkama kapasitesi
Maksan DW-3000 Konveyörlü Tip Bulaşık Makinesi 3000 tabak/saat yıkama kapasitesi
General Features
• All surfaces in contact with water are AISI 304 quality stainless steel
• High quality stainless steel heaters
• Digital temperature display (optional)
• Conveyor system with dual-stage speed (optional) • Motors are made in Europe
• Cold water and hot water connection possibility
• Low electricity consumption thanks to components resistant to hot water connection
• lndividual pre-wash and wash tank • Pre-heated boiler tank system
• Safety switches
• User-friendly control interface
• Height-adjustable legs
• Emergency stop button for safety
• Prewashing, washing, rinsing and drying stages
• Rinsing boost, detergent and rinse aid pump can be connected to chasis (optional)
• Continuous wash cycle
• Lower energy and water consumption by switch rinsing system
|
TEKNİK ÖZELLİKLER / TECHNICAL SPECIFICATIONS |
|
|
Model / Model DW-3000 |
|
|
Güç girişi / Power input |
380V/3/N ~ 50Hz |
|
Su girişi / Water input 3/4" |
|
|
Güç kaynağı / Power supply |
Electric |
|
Kumanda tipi / Command type Analog |
|
|
Yıkama periyodu (sn.) / Washing cycle (sec.) |
Sürekli/Continuous |
|
Yıkama kapasitesi (sepet/s) / Washing capacity (basket/h) 170 |
|
|
Yıkama yüksekliği (mm) / Washing clearance (mm) |
480 |
|
Yıkama tankı kapasitesi (lt) / Washing tank capacity (lt) 70+60 |
|
|
Boyler tankı kapasitesi (lt) / Boiler tank capacity (lt) |
13+13 |
|
Yıkama sıcaklığı ( ̊C) / Washing temperature ( ̊C) 60-65 |
|
|
Durulama sıcaklığı ( ̊C) / Rinsing temperature ( ̊C) |
80-85 |
|
Durulama su tüketimi (lt) / Rinsing water consumption (lt) 3-4 |
|
|
İç kabin yüksekliği (mm) / lnternal cabinet height (mm) |
480 |
|
Dinamik su giriş basıncı (bar) / Dynamic water input pressure (bar) 2-6 |
|
|
Dış ölçüler (WxDxH) (mm) / External dimensions (WxDxH) (mm) |
3035 x 815 x 1800 |
|
Yıkama pompası gücü (kW) / Washing pump power (kW) 1,1+1,1 |
|
|
Tank ısıtıcı gücü (kW) / Tank heater power (kW) |
4+6 |
|
Boyler ısıtıcısı gücü (kW) / Boiler heater power (kW) 12+16 |
|
|
Sepet ölçüleri (mm) / Basket dimensions (mm) |
500 x 500 x 100 |
|
Toplam güç (kW) / Total power (kW) 49,5 |
|
|
Besleme gerilimi (V) / Voltage (V) |
380V/3/N ~ 50Hz |
|
Net ağırlık (kg) / Net weight (kg) 315 |
|
|
Brüt ağırlık (kg) / Gross weight (kg) |
340 |
